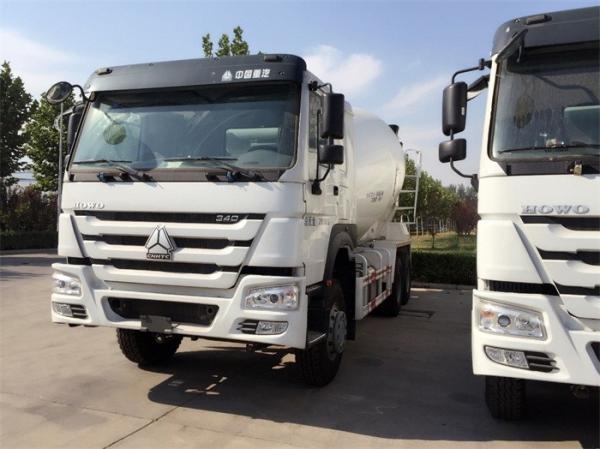

Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer

Jinan Automobile Sales Co., Ltd.
Contact Now

Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer

Brand Name : SINOTRUK HOWO

Model Number : ZZ1257N3247

Certification : ISO/3C/BV/IFA/SGS

Place of Origin : China

MOQ : 1unit

Price : US$35000-USD55000/unit

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000 units per month

Delivery Time : 15-20 working days after deposit or LC

Packaging Details : Nude, Waxing in RORO or bulk ship

Manufacturer : SINOTRUK (CNHTC)

Series : HOWO

Product Name : Concrete Mixer Truck

Chassis Model : ZZ1257N3247W

Drive Type : 6X4, LHD

Engine : WD615.47, 371HP, Euro II

Mixer Tank Vol. : 8-15 cbm

Loading Capacity : 25-30 tons

Cabin : HW76,1 Beth

Transmission : HW19710

Contact Now

HOWO Sinotruk Low Price Truck Mounted Concrete Transit Mixer 10m3 Mixing Camion

SINOTRUK HOWO 6x4 336ph 8m3 Concrete Mixer Truck On Sale in africa market

SINOTRUK HOWO Mixer Truck, the best choice for you!

Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer

SINOTRUK has many specialized international advanced level production line-frame, body assembly production and entire vehicle assembly, inspection and so on, and all use of advanced international, domestic leading production, testing facilities, high degree of automation, all can provide a strong support for the building of the model.

Vehicle assembly line is the longest general assembly line of heavy commercial vehicles in Asia. The whole production line is composed of pre line assembly line, trim line, engine assembly line and axle assembly line etc. SINOTRUK has the most advanced fully automatic nut tightening machine, pipe packing machine, transmission shaft packaging and assembly facilities and various liquid filling machines, electrical testing instrument and so on. Guarantee the quality of the vehicle assembly strongly.

MIXER TRUCK
Model ZZ1257N3647A (Left Hand Driving)
Brand SINOTRUK–HOWO
Dimension(L x W x H)(mm) 9500×2550×3990
Mixer tanker (Lx W x H) (mm) 10 m3

mixer tank: main tank 5mm alloy steel wear resistant material,

front tank head 8mm alloy steel wear resistant material

Standard configuration:

Sub frame, domestic reducer,

Germany ZF5300 reducer,

Germany REXROTH hydraulic pump,

Germany REXROTH hydraulic motor,

KAIPENG radiator,

Selective configuration:

1. Emergency high pressure oil hose(4 pieces), 12m emergency oil hose(Italy), water cannon, large tool box, electric water supplying system.

2. Italy Bonfiglioli / Italy PMP reducer, Italy PMP / Italy MESSOR / America EATON / America SAUER hydraulic pump, Italy PMP / America EATON / America SAUER hydraulic motor.

Approach/Departure angle(°) 19/26
Overhang(front/rear) (mm) 1500/1739
Wheel base (mm) 3850+1350
Max speed(km/h) 75
Curb weight(kg) 12290
Loading weight(kg) 35000
Fuel tanker capacity(L) 300
Fuel consumption(L/km) 20-40 L/100 km
Clutch Single-plate dry clutch Φ430mm
Fuel type Diesel
Horse power 336HP
Emission EURO II
Engine WD615.69, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, directly injection
Transmission HW19710,10 forwards and 2 reverse
Service brake Dual circuit compressed air brake
Parking brake Spring energy, compressed air operating on rear wheels
Auxiliary brake Egine exhaust brake
Model 8118 hydraulic steering with power assistance
HF9 , Steering with double T-cross section beam
HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels
Tire 12.00R20
Cab Right Hand Driving
Battery 2X12V/165Ah
Alternator 28V-1500kw
Starter 7.5Kw/24V
HOWO76 cab, one sleepers, with air-condition, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers

Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer

Diesel HW76 Cabin Mounted 10m3 Concrete Transit MixerDiesel HW76 Cabin Mounted 10m3 Concrete Transit MixerDiesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer

Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer

Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer

Mixer Tank:

Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer

Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer

Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer

Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer

Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer

Diesel HW76 Cabin Mounted 10m3 Concrete Transit Mixer

First leading advantage: SINOTRUK masters overall R & D core technology and major general component, and has self manufacturing capability

Second leading advantage: Unified technical thinking, unified planning, unified process means, unified quality standard

Third leading advantage: High-end professionals, improve product development chain, which make SINOTRUK unique advantage in domestic heavy-duty automobile product development

We are expecting your trust and cooperation!!
